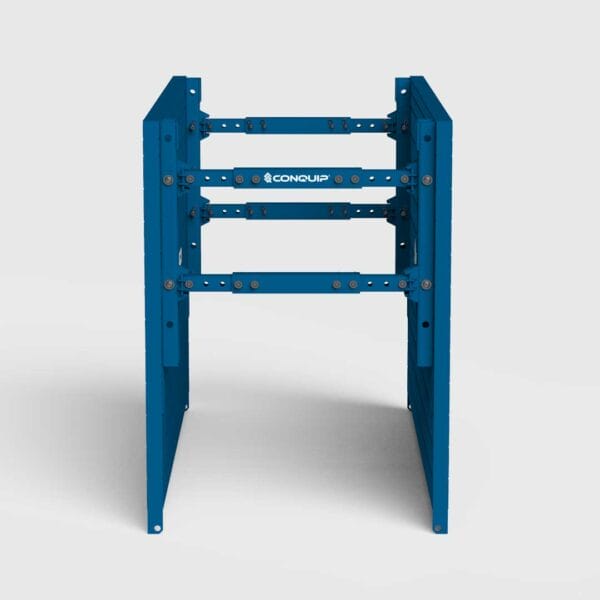

Trench-Box-Base-Box-Front
Trench-Box-Base-Box-RF
Trench-Box-Base-Box-Right
Trench-Box-Base-Box-LF
Trench-Box-Base-Box+Extension-Box-Front
Trench-Box-Base-Box+Extension-Box-RF
Trench-Box-Base-Box+Extension-Box-Right
Trench-Box-Base-Box+Extension-Box-LF
Trench-Box-High-Clearance-Strut-Front
Trench-Box-High-Clearance-Strut-RF
Trench-Box-High-Clearance-Strut-Right
Trench-Box-High-Clearance-Strut-LF
Trench-Box-Base-Box-Front
Trench-Box-Base-Box-RF
Trench-Box-Base-Box-Right
Trench-Box-Base-Box-LF
Trench-Box-Base-Box+Extension-Box-Front
Trench-Box-Base-Box+Extension-Box-RF
Trench-Box-Base-Box+Extension-Box-Right
Trench-Box-Base-Box+Extension-Box-LF
Trench-Box-High-Clearance-Strut-Front
Trench-Box-High-Clearance-Strut-RF
Trench-Box-High-Clearance-Strut-Right
Trench-Box-High-Clearance-Strut-LF

Trench Box

The Trench Box is a simple to assemble, two sided trench lining support system. Designed to be installed by an excavator, the Trench Box is normally selected to allow for the installation of utility pipes where ground movement is not critical.

It is suitable for trench depths of up to 5.18 metres and can accommodate various pipe sections sizes. Not sure your machine has the capacity for these trench boxes? We offer a Lightweight Trench Box that may be better suited to your requirements.

Quantity
SKU: N/A Category: Tags: , , , , , , , , , , , , , , , , ,

Description

Features

  • The Trench Box robust design provides more durability, ensuring these boxes ideal for dig and push installation.
  • Incremental struts allow for varying working widths ranging from 0.55 to 3.98 metres.
  • High clearance struts available for  working widths from 2.05 to 5 metres.
  • Rocker assemblies in the incremental struts reduce strain on the panels during ‘dig and push’ installation.
  • Reinforced lifting points for easy manoeuvre around site.

Benefits

  • The Trench Box incremental and high clearance struts accommodate varying pipe sizes and applications.
  • Suitable for trench depths of up to 5.18 metres and trench widths of up to 4.2 metres with standard incremental struts.
  • Suitable for trench depths of 3.87 metres and trench widths of up to 5.2 metres with high clearance struts.
  • Edge Protection panels provided free-of-charge with all box hires and purchases.
  • Flexible payment options with easy-to-understand documents.
  • Comprehensive user guides with full assembly, installation and extraction instructions and supporting videos.
  • The Trench Box can be supplied with a full range of suitable lifting and extraction chains and trench access accessories – see our full range here.

Product gallery

manhole box and trench box in the trench
conquip trench shoring equipment
